UGAMMA-V2-BLK/WH GAMMA V2 Linear LED Pendant Light

available

Brochure
Product Information

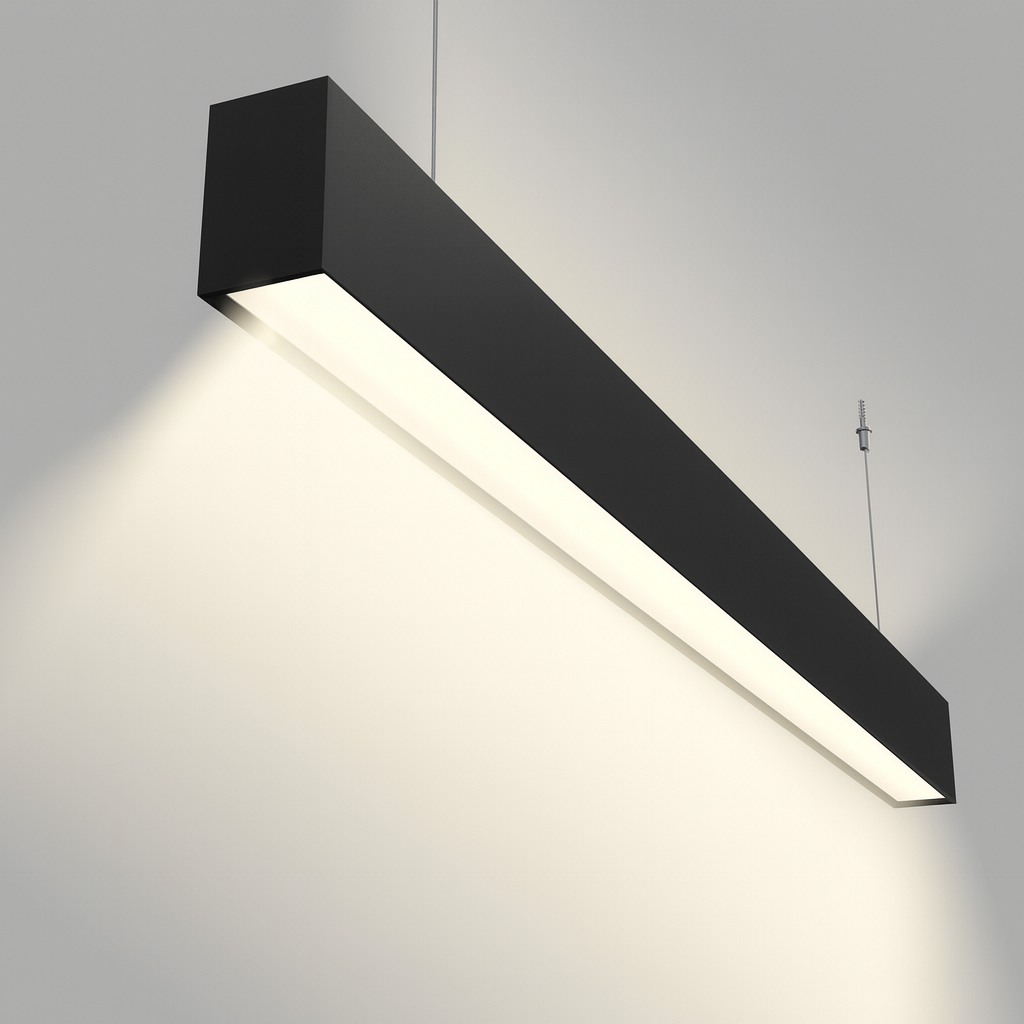

GAMMA V2 Linear LED Pendant Light

Modern linear pendant light with selectable wattage and CCT via an integrated DIP switch.
The standard model provides down lighting only.
An optional clip-on up light module can be added for up & down lighting.
Two Gamma fittings can be connected together seamlessly to extend the overall length.

Features:

  • Available Sizes: 2400 mm / 3000 mm

  • Finish: Black / White

  • Light Distribution: Down only (standard) / Up & Down (optional upper LED bar)

  • Power: 40 W / 60 W / 80 W (selectable via DIP switch)

  • CCT: 3000 K / 4000 K / 5500 K (3 CCT selectable)

  • Lumen: 4400 / 6600 / 8800 lm

  • CRI: ≥ 90 | Beam Angle: 110°

  • Cable: 3000 mm adjustable

  • Non-dimmable

Optional Up Light Clip-On Modules

Clip-on frosted lens module providing approx. 30% upward light output.
Selectable CCT 3000K / 4000K / 5700K, using SMD2835 LED, PF > 0.9, CRI ≥ 90, beam angle 110°.

  • For 2400 mm Linear: L1900 × W23.5 × H6 mm

  • For 3000 mm Linear: L2500 × W23.5 × H6 mm
